SVGH系列導軌直齒齒條系列
產品特性
|
|
|
|
|
|
|
|
|
|
○ |
精度等級：DIN 8 |
|
○ |
齒面硬度：55~55HRC |
|
|
|
○ |
齒型：斜齒 |
|
○ |
表面處理：研磨 |
|
|
|
○ |
壓力角：20° |
|
○ |
齒面處理：精切削 |
|
|
|
○ |
材質：42CrMo |
|
○ |
熱處理：齒面高周波熱處理 |
|
|
|
○ |
右旋角：19° 31' 42'' |
|
|
|
|
|
|
|
|
|
|
|
|

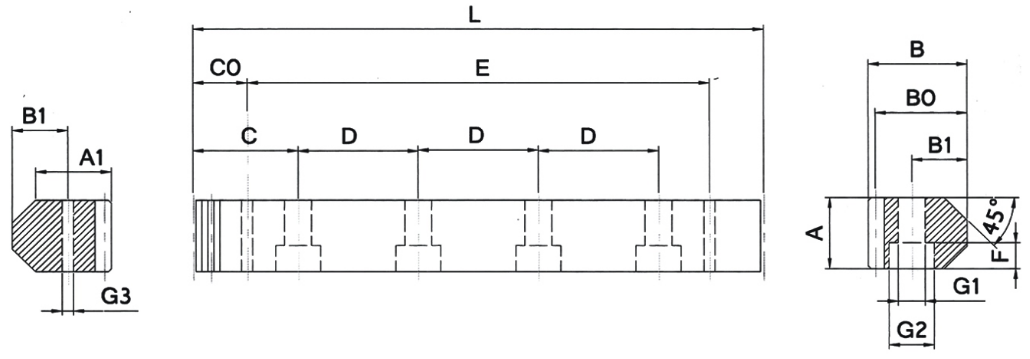

機械尺寸
技術參數
單位/Dimension：mm
產品型號
Catalog NO. |
L |
模數
(M) |
A |
B |
B0 |
C |
D |
孔數
Hole NO. |
B1 |
B2 |
G1 |
G2 |
F |
C0 |
E |
G3 |
|
SSGH015-050 |
500 |
1.5915 |
14.5 |
24.5 |
22.9 |
62.50 |
125 |
4 |
13 |
20 |
7 |
11 |
7 |
30 |
440 |
5.7 |
|
SSGH015-100 |
1000 |
1.5915 |
14.5 |
24.5 |
22.9 |
62.50 |
125 |
8 |
13 |
20 |
7 |
11 |
7 |
30 |
940 |
5.7 |
|
SSGH020-050 |
500 |
1.5915 |
19.5 |
29.5 |
27.9 |
62.50 |
125 |
4 |
15.5 |
23.5 |
9 |
15 |
9 |
30 |
440 |
5.7 |
|
SSGH020-100 |
1000 |
1.5915 |
19.5 |
29.5 |
27.9 |
62.50 |
125 |
8 |
15.5 |
23.5 |
9 |
15 |
9 |
30 |
940 |
5.7 |
|
SSGH025-050 |
502.5 |
2.3873 |
24.7 |
33 |
30.61 |
62.81 |
125.625 |
4 |
18.5 |
25.2 |
9 |
15 |
9 |
30 |
442.5 |
5.7 |
|
SSGH025-100 |
1005 |
2.3873 |
24.7 |
33 |
30.61 |
62.81 |
125.625 |
8 |
18.5 |
25.2 |
9 |
15 |
9 |
30 |
945 |
5.7 |
|
SSGH035-050 |
500 |
3.1831 |
34.6 |
46.6 |
43.41 |
62.50 |
125 |
4 |
28.6 |
36.7 |
11 |
18 |
11 |
30 |
440 |
7.7 |
|
SSGH035-100 |
1000 |
3.1831 |
34.6 |
46.6 |
43.41 |
62.50 |
125 |
8 |
28.6 |
36.7 |
11 |
18 |
11 |
30 |
940 |
7.7 |
